ESP-PROG Stick
harexew / December 2024 (126 Words, 1 Minutes)
This project implements a compact and portable tool for programming ESP32 and ESP8266 modules, using ESP-Prog in a USB stick form factor. The design features a detachable cable for ease of use and transport, allowing for quick and efficient programming of ESP32 and ESP8266 modules.
Quick Access
Features
- Compact USB Stick Format: The tool is designed to be portable, fitting easily into a USB port.
- Detachable Cable: Comes with a detachable cable for easy connection and disconnection, making it more versatile and durable.
- ESP-Prog Functionality: Enables seamless programming and debugging of ESP8266 modules, using the widely supported ESP-Prog standard.
Hardware Details

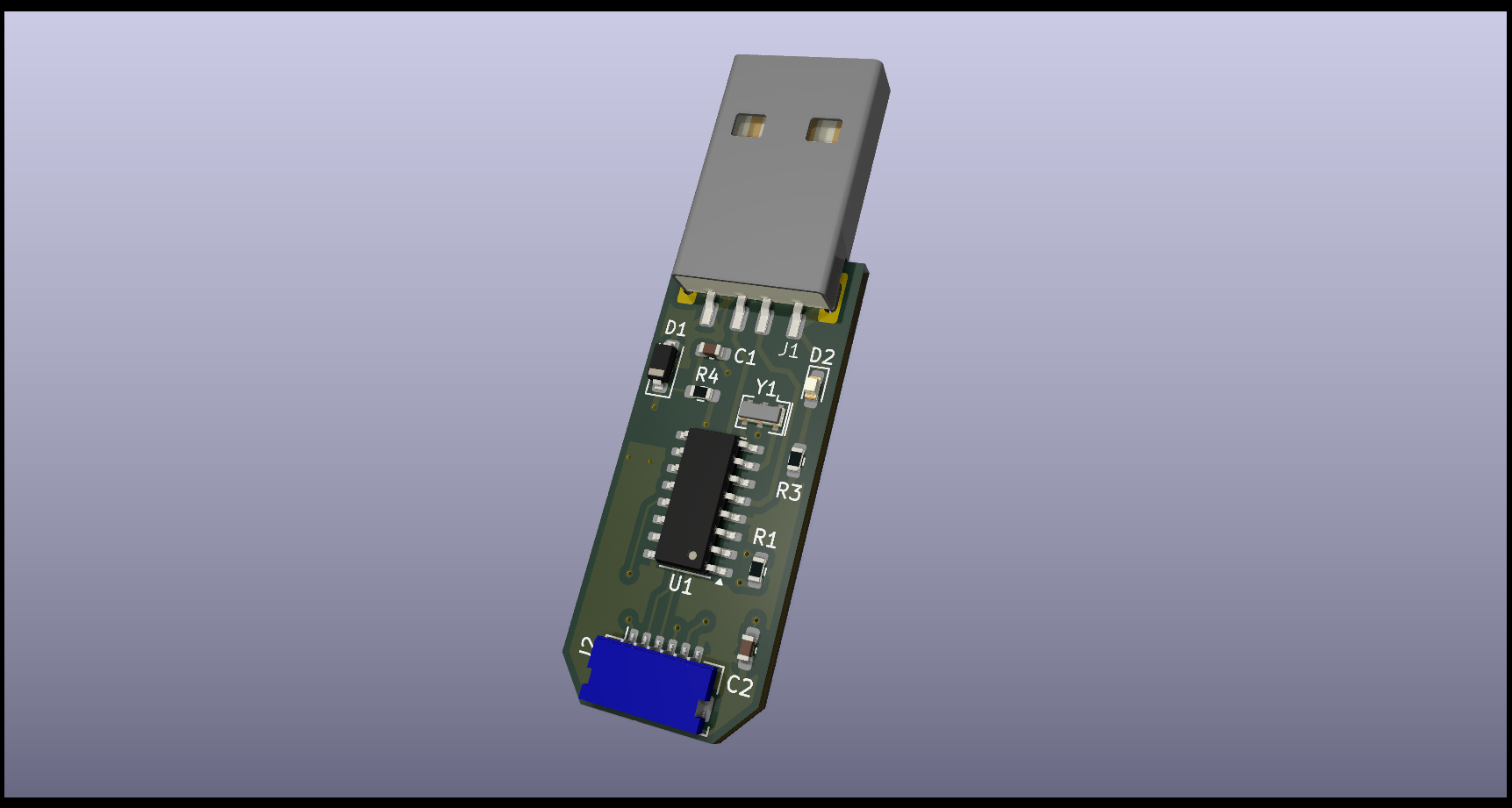

- Design Software: Created using KiCad 8.0.6.
- Components: The device consists of a USB stick PCB form factor for ESP-Prog functionalities and a detachable cable to connect directly to ESP8266 modules for programming and debugging.
Hardware Features
- Onboard 3.3V Regulator
- USB to UART Bridge CH340G
- Auto Reset and Programming Circuit
Connector
The connector is a 6-pin JST SHL connector. More details can be found here.
Windows Driver Installation
For Windows users, a driver is required to use the USB to UART Bridge (CH340G). The driver can be downloaded from this link.
License
This project is licensed under the GPL v3 License.
Contributing
Feel free to submit issues or contribute to this project. Fork the repository and make a pull request with detailed information about your changes.
Acknowledgments
- Espressif Systems for ESP-Prog and ESP8266 documentation
- Community resources on ESP8266 programming and USB hardware designs.
